THERMOTECH SPECIFICATIONS

Hydronic Panel Radiators are available in two styles:

The choice depends on the heating requirements, installation suitability and personal preference. The

Radiator can be mounted at a wall distance of 1" or 1.8".

**Heat output (BTU/Hr per linear foot)



Heights*

12"

16"

24"

Single

886

1040

1480

Double

1550

1985

2810

Table 1

Water Temperature (°F)

140°

150°

160°

170°

180°

190°

200°

210°

Heat factor*

0.74

0.79

0.86

0.93

1.00

1.07

1.14

1.21

*Multiply the heat factor with the BTU/Hr/Ft from Table 1 to determine

the Heat Output for different temperatures. (Example: for Double 24" at

190°F Water Temperature, heat Output = 1.07 x 2810 = 3006 BTU/Hr/Ft)

Weight (LBS per lineal foot)



Heights*



12"

16"

24"

Single

6.5

8.8

13.0

Double

12.6

16.7

25.1

Table 2



Available Lengths* … 9 options to choose from:

Approx.

Linear Feet

2

3

4

5

6

7

8

9

10

Inches

24

36

48

60

72

84

96

108

120

Actual

Millimeters

600

900

1200

1500

1800

2100

2400

2700

3000

Linder Feet

2.0

3.0

3.9

4.9

5.9

6.9

7.9

8.9

9.8

Inches

23.6

35.4

47.2

59.1

70.9

82.7

94.5

106.3

118.1

Table 3

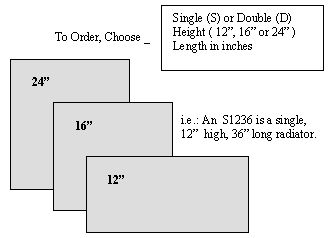

**All 65° F Entering Air, 180° F Water Temperature, 1.0 GPM Water Flow, and To Order, Choose →

15% Heating Effect Factor is included. For BTU/Hr figures base on 4.0 GPM

Water Flow, multiply the heat output figure from table 1 by 1.057. (Example:

For Double 24" at 4.0 GPM Water Flow and 180° F Water Temperature,

Heat Output = 1.057 x 2810 = 2970 BTU/Hr/Ft)

*ThermoTech products are manufactured to metric dimensions. For easy i.e.: An S1236 is a single,

reference and ordering purposes, approximate even numbers in U.S. 12" high, 36" long radiator.

sizes are used. Both approximate and exact lengths are indicated in

Table 3. Exact widths and heights are as follows: Widths: Single 1.8"

(45mm), Double 4" (3.9" = 100mm) Heights: 12" (11.8"), 16" (15.8"), 24" (23.6")

Special order panels lead time 12-14 weeks.
